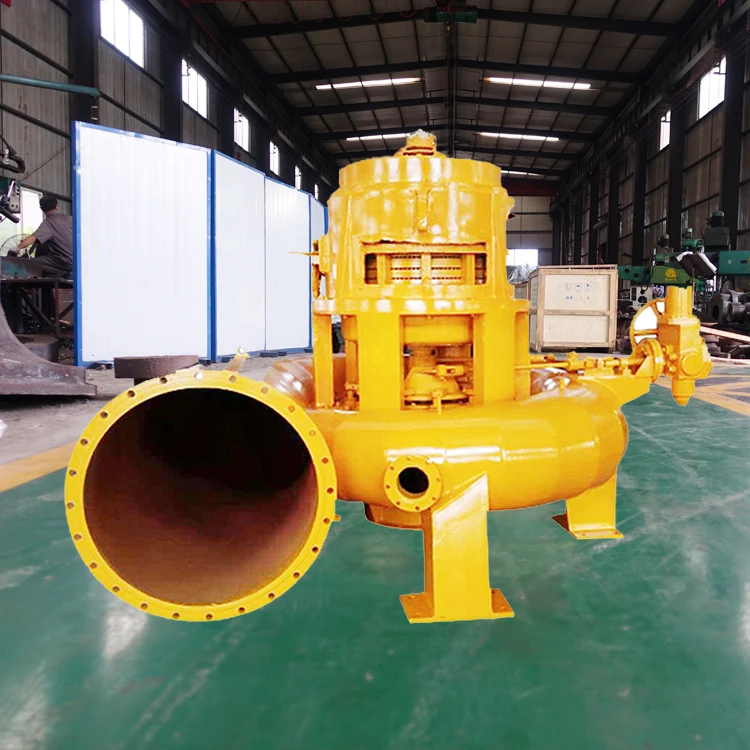

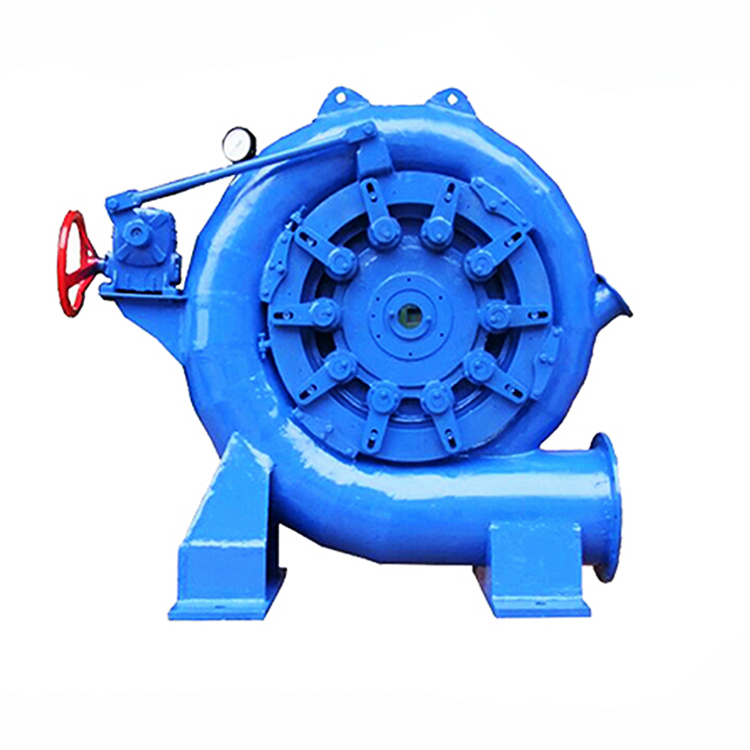

Stainless Steel Blades Hydraulic 50KW Micro Hydro Power Generator

Advantages of the tubular turbine generator

1. Power plant from influent to effluent direction basically is communicated in axial direction.If the buld turbine hydropower station water inlet outlet pipesare not turning,simple shape,flow channel to reduce the hydraulic loss,convenient construction.

2.Tubular turbine with high flow ability high specific speed,so in the head and power under the same conditions tubular turbine propeller diameter than about 10%;

3.Tubular turbine hydropower station has the advantages of compact structure,compared with the same specifications of Kaplan turbine to its relatively small size,can be arranged in the dam,cancel diversion system complex,reduce the workshop building area,reduce the amount of excavation and concrete plant,according to the analys is of revevant data,civil construction cost can save 20%-30%;

4. Tubular turbine for reversible pump turbine,the flow has no sharp corners,so that the pump and turbine can obtain good hydraclic properties.As for can with bidirectional power,bi-directional pumping and two-way drainage functions six tidal power sation.Therefore,it is suitable for the comprehensive development and utilization of low head water resource;

5. Turgo hydropower station in general than the vertical axial flow type hydropower station construction period is short,fast effect.

Key components or supporting equipment

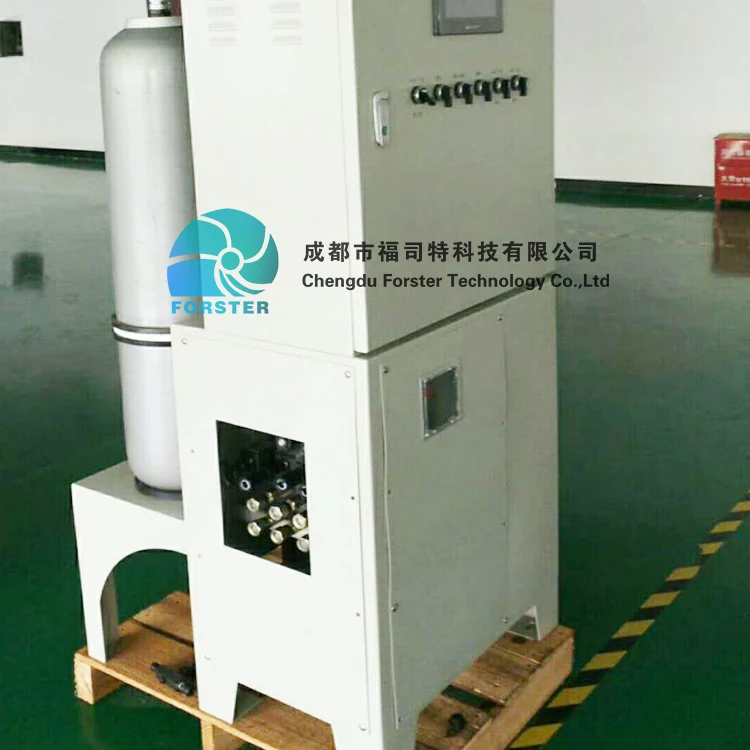

1.Inlet Pipe And Valve	2.High Hydraulic Microcomputer Governor

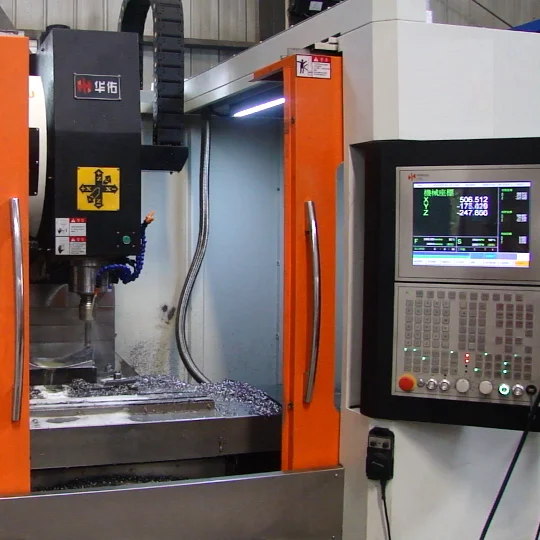

3. Excitation Device	4. CNC machining

Technical Specifications

Our main products included:

1, Axial flow type turbine generators series

2,Turgo turbine generators series, e.g. vertical type and horizontal type.

3,Tubular turbine generators series, e.g. Bulb type and shaft extension type

4,Francis turbine hydro generators series

5,Impulse turbine generators series and double turbine generators series and so on.

1. You are a trading company or a manufacture?

We are a hydro turbine manufacture with over 60 years of experiences, we have facilities in Zigong City, pay a visit to our factory you will know more about us.

2. How to choose a right turbine? There are so many models offering on your website. And how to calculate the turbine capacity?

Just tell me the water head, flow rate, our senior engineer will work out the solution for you. The turbine capacity: P=Flow rate(cubic meter/second) * Water head(m) * 9.8(G) * 0.8(efficiency).

3. What information shoul I provide for getting the quotation?

We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution.

4. When my turbine shut down, who can help me solve the problem?

You are free to call me day or night at my cellphone number +8613540368205. I am sure our engineer able to fix the problem either by changing spare parts or remove something.

5.Can you do EPC for a hydroelectric power plant?

Yes, we can provide TURN-KEY and EPC services including measurement, design, manufacturing, construction, manufacturing, commissioning, inspection, maintenance runner replacement and refurbishment/upgrade/improvement/repair/refurbishment of turbines/generators including bearings, seals For parts and key parts, we will send technicians and workers to install equipment.

6. How can I trust you?

Pay us via trade assurance is not a problem. And we also accept L/C. To build mutul-trust we think pay a visit to our facility is the best way.

Q7,Does your company have its own independent official website?

Of course, and we can see more information about our company and products on our official website. website address: www.fstgenerator.com

Hydro Turbine belongs to customized products. We could design products according to your requirement. Could you give us the following parameters so that we could make a professional solution for your project.

1.Flow rate ( lit/sec or m³/sec?)
2.Water head ( m?)
3.Total power you need( KW?)
4.Frequency ( 50 hz or 60 hz?)
5. Voltage( V?)
6. On grid or off grid?
7. Voltage of transmission line if it is on grid( V?)
8. Elevation(MSL)
9. Is it clean fresh water(with our sand, stone and silt ect,.)
