Brushless Excitation Low Head 1000kw Kaplan Turbine Generator

Product Categories
Chengdu Forster Technology Co., Ltd.
Contact Now

Brushless Excitation Low Head 1000kw Kaplan Turbine Generator

  • 1
  • 2

Brand Name : Forster

Model Number : ZD560A-LH-120

Certification : CE/TUV/ISO9001/SGS

Place of Origin : Sichuan, China (Mainland)

MOQ : 1 Set/Sets

Price : USD90000-180000/set

Payment Terms : L/C, T/T

Supply Ability : 50 Set/Sets per Month

Delivery Time : 120days

Packaging Details : Wood box

Capacity : 300kw-1000kw

Voltage : 380v or 400v or 6300v

Frequency : 50Hz/60Hz

Generator type : Brushless Excitation

Power Factor : cos 0.8lag

Governor : High Hydraulic Microcomputer Governor

Runner material : stainless steel

Keyword : kaplan turbine

Insulation class : F/F

Installation method : vertical installation

control Panel : 5 in 1 integrated control panel

Contact Now

Low Head 1000kw Kaplan Turbine for Hydroelectric Generator

Product features:

Kaplan turbine is divided into two types: kaplan turbine fixed paddle type and Kaplan paddle type. Kaplan turbine is used to develop water resources with lower head and larger flow. Its specific speed is greater than that of the francis turbine, which belongs to the high specific speed turbine. Under the condition of low head, axial flow turbine and francis turbine have more obvious advantages, when they use head and output at the same time, axial flow turbine due to the large flow capacity, can use a smaller runner diameter and higher speed, thus reducing the size of the unit, reduce the investment. When both have the same diameter and are used at the same head, axial turbines can deliver more efficiency. In particular, axial flow propeller turbine, because the runner blade and guide blade with the change of working conditions form an optimal co-relation, improve the average efficiency of the turbine, expand the operating range, and obtain stable operating characteristics, is worth widely used as a type.

300kw - 1000kw Kaplan Tubrine Parameters:
ZD-LM(Y)-Kaplan turbine generator unit Generator Gevernor or Regulating work
Turbine
Type Blade angle(°) Water head(m) Discharge (m³/s) Speed (r/min) Power(kw) Efficiency(%)
ZD560a-LH-120 5 8.1 5.2 375 360 87.2 SF320-16/1430 DST-6000 or YT-6000
9.4 5.56 375 449 87.5 SF400-16/1430
10.3 6.17 428.6 561 87.1 SF500-14/1430 YT-6000 or DST-6000
12.6 6.54 708 87.8 SF630-14/1430
14 7.54 500 879 87.1 SF800-12/1430 YWT-10000
16.9 7.57 1099 87.7 SF1000-12/1430
10 9.3 5.72 300 449
564
708 879
1099		 86.8
87		 SF400-20/1730 YT-6000 or
DST-6000
9.9 6.64 375 SF500-16/1730 SF630-16/1730
12.2 6.8 87
13.5 7.62 428.6 SF800-14/1730 YWT-10000
16.5 7.76 SF1000-14/2150
+ 15° 8.5 6.3 300 449 85.5 SF400-20/1730 YT-6000 or DST-6000
10.3 6.49 561 SF500-20/1730
10.9 7.75 375 708 SF630-16/2150
13.1 8 428.6 879 SF800-16/2150 YWT-10000
14.9 9.79 1099 SF1000-14/2150

Product pictures:

Brushless Excitation Low Head 1000kw Kaplan Turbine GeneratorBrushless Excitation Low Head 1000kw Kaplan Turbine Generator

Brushless Excitation Low Head 1000kw Kaplan Turbine Generator

Pelton Turbine Design Schematic​:

Brushless Excitation Low Head 1000kw Kaplan Turbine Generator

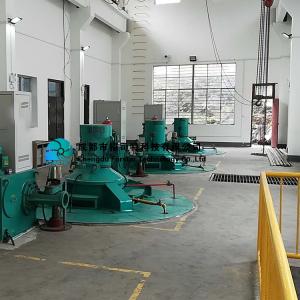

Engineering case:
Brushless Excitation Low Head 1000kw Kaplan Turbine Generator

FAQ

Q1, Which hydro turbine should I choose?

Please tell me the water head, flow rate, frequency, Total power you need

, voltage, on grid or off grid operation, we will propose a solution.

Q2, Can your factory provide all the equipment for hydropower generation?

Yes, we can provide you with turbines, hydro-generators, pressure regulators, turbine wheels, control panels, transformers, monitoring systems and more.

Q3, Can you do EPC for a hydroelectric power plant?

Yes, we can provide TURN-KEY and EPC services including measurement, design, manufacturing, construction, manufacturing, commissioning, inspection, maintenance runner replacement and refurbishment/upgrade/improvement/repair/refurbishment of turbines/generators including bearings, seals For parts and key parts, we will send technicians and workers to install equipment.

Q4, Is your company a trading company or a manufacturer?

We are a manufacturer of hydro turbine generators and started to promote the international market in 2013. Our factory is located in Sichuan, where China's water conservancy and hydropower is most developed. Welcome to visit our factory in China.

Q5, How many an acceptable MOQ?

For this product, our acceptable MOQ is 1 set.

Q6, How long is the delivery time?

Delivery times range from 15 days to 6 months depending on the model you are purchasing.
